Ultraviolet Steriliser with 1 Pre-Filter

UVT5500SS with 1SW500

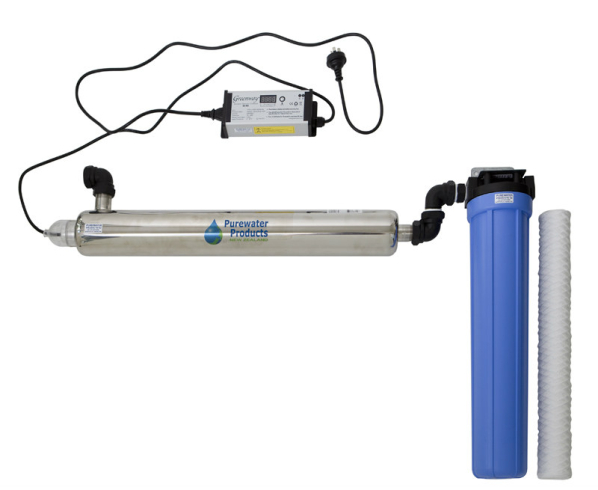

This UVT5500SS with 1SW500 is a whole house Ultraviolet Steriliser (UV) with a 1 micron pre-filter.

The UVT5500SS Ultraviolet Steriliser eliminates bacterial and viral contamination of the water supply.  It is commonly used to treat rainwater supplies and other water sources that are at risk from bacterial contamination such as E.coli, Hepatitis, Legionella, and Salmonella.

The 1SW500 1 micron pre-filter is installed prior to the UV unit for the removal of fine particles, dust, dirt, sediment, Giardia and Cryptosporidium.  This string wound pre-filter cleans the water prior to it entering the Ultraviolet Sterilising unit.

The complete system is designed to cope with the flow rate of a whole house.

• Suitable for whole house use
• Ultraviolet Steriliser unit
• 1 micron string wound pre-filter
• Includes 20” standard housing (to fit pre-filter) with ¾” ports
• Kills 99.9% of bacteria and viruses at rated flow
• Removes fine dirt and sediment down to 1 micron
• Giardia and Cryptosporidium safe
• Lamp Rated Life 9,000 Hours (annual lamp replacement)
• String wound pre-filter replaced 6 monthly or less
• Intelligent Lamp Life Clock - shows how long till  lamp replacement required
• Low power consumption - 35W
• Easy installation and lamp change
• 12-month warranty

UVT5500SS Specifications

• Dosage at flow rates (LPM)               v  16 mJ/cm2 : 111 litres/min

                                v  30 mJ/cm2 : 58 litres/min

                                v  40 mJ/cm2 : 43 litres/min

• Ballast Dimensions                                                  8" x 3" x 2"
• Chamber Diameter                                                   3.5"
• Chamber Length                                                       27.88"
• I/O Port Size                                                                3/4" FNPT; 1.0" MNPT
• System Maximum Operating Pressure                125psi
• Pressure Drop at 30 mJ/cm2 Rated Flow (psi)    0.5
• Voltage                                                                        100-240V, 50/60Hz
• Power Consumption (W)                                         35W
• Lamp Watts                                                                30W
• Chamber Material                                                      304Stainless Steel

Please note this filtration system does not eliminate other contaminants in your water supply such as tastes, odours, or chemicals, however you can contact us if you have these water quality issues and wish to address them.
